CVD Diamond for Thermal Management & Precision Tooling
CVD diamond materials, heat spreaders and tooling materials backed by MPCVD manufacturing, processing and technical review for demanding engineering applications.
MPCVD Systems
Manufacturing systems across the group.
10 / 12 kW Systems
MPCVD production at Anhui JingChuang.
75 kW Systems
High-power MPCVD production resources.
Single-Crystal Grade
W/(m·K) thermal-conductivity material grade available.
Polycrystalline Format
Large-area CVD diamond wafer / plate capability.
Start With the Engineering Requirement
JingChuang CVD focuses on two primary application paths: thermal management for high-power devices and CVD diamond materials for precision tooling.

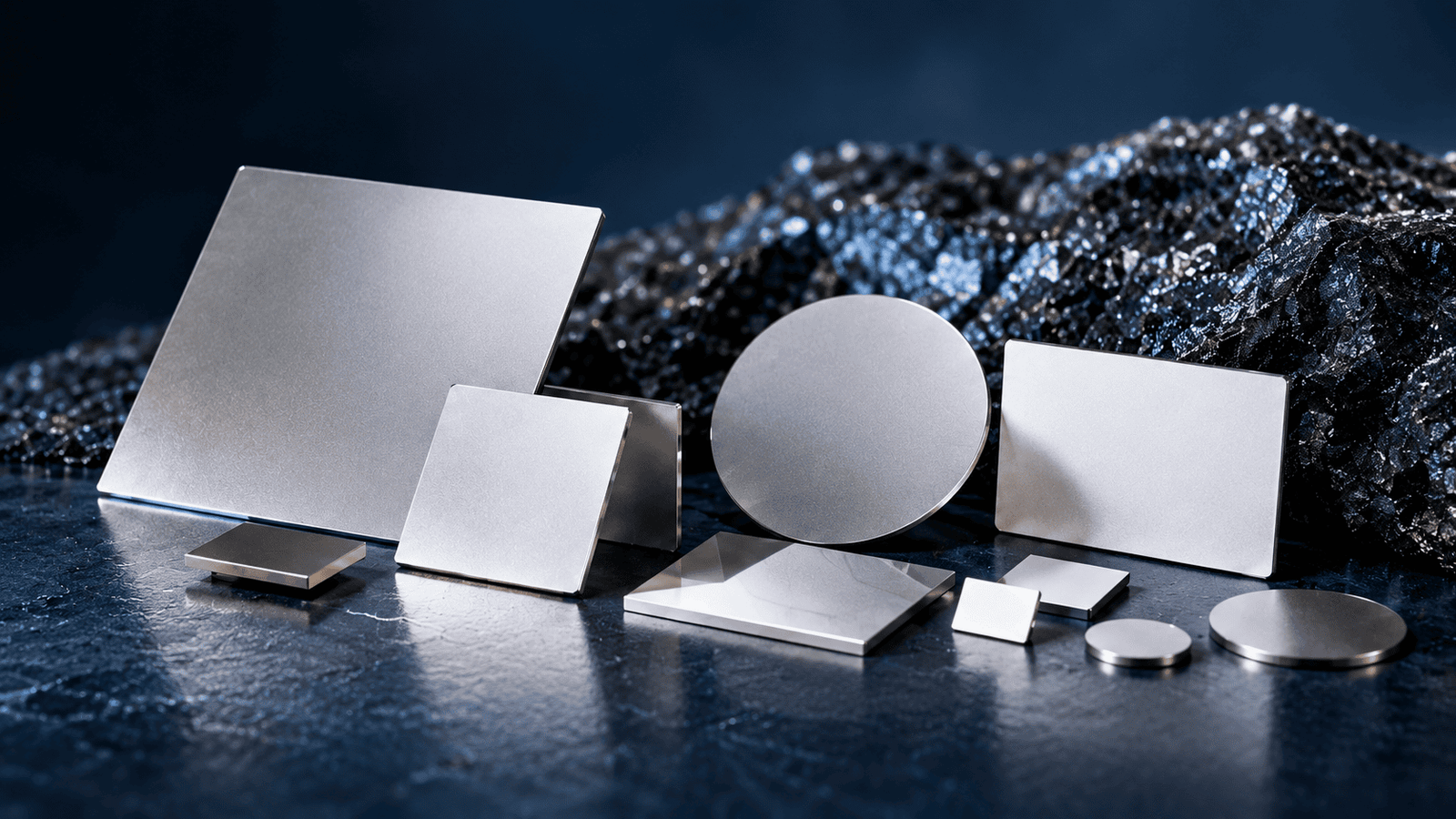

Thermal Management
Single-crystal and polycrystalline CVD diamond materials together with custom heat spreaders for high-power thermal-management applications.
Explore Thermal Management →

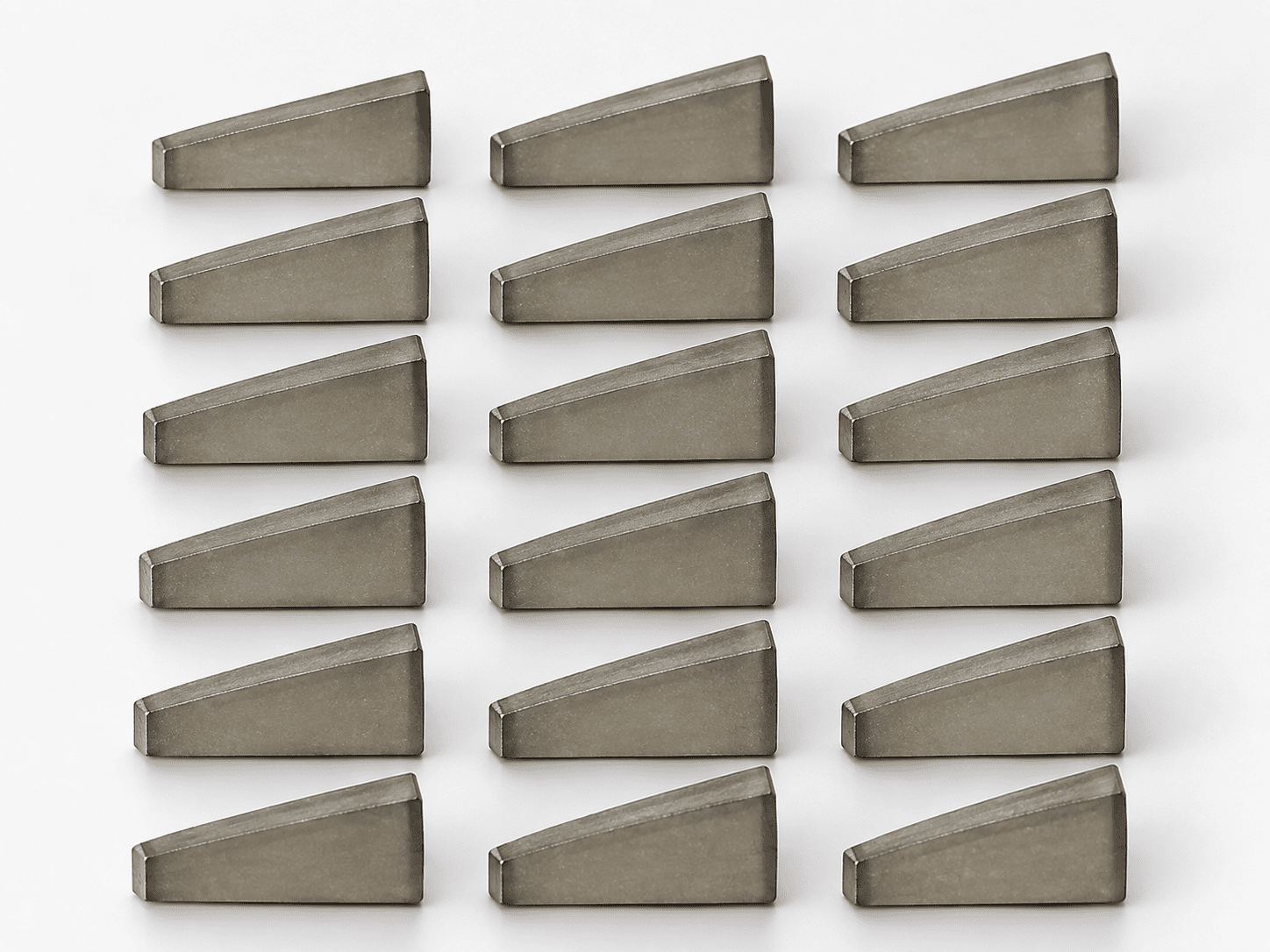

Precision Tooling
[100], [110] and [111] single-crystal CVD diamond materials for precision cutting, finishing and wear-related applications.
Explore Precision Tooling →CVD Diamond Materials & Components
Select a finished thermal component, single-crystal material, large-area polycrystalline material or tooling-grade CVD diamond.

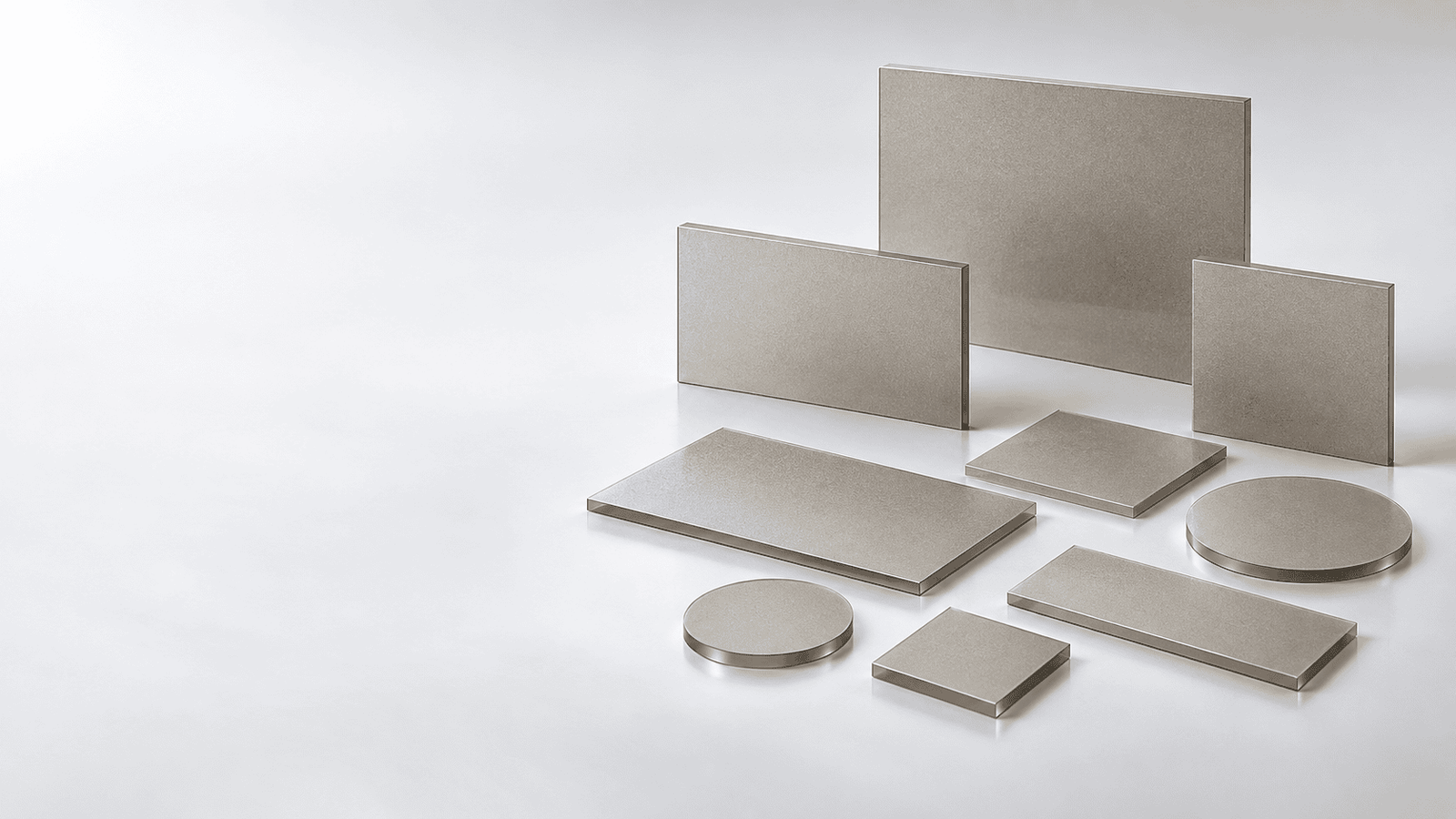

CVD Diamond Heat Spreaders
Custom heat-spreading components designed around device footprint, thickness and thermal integration.

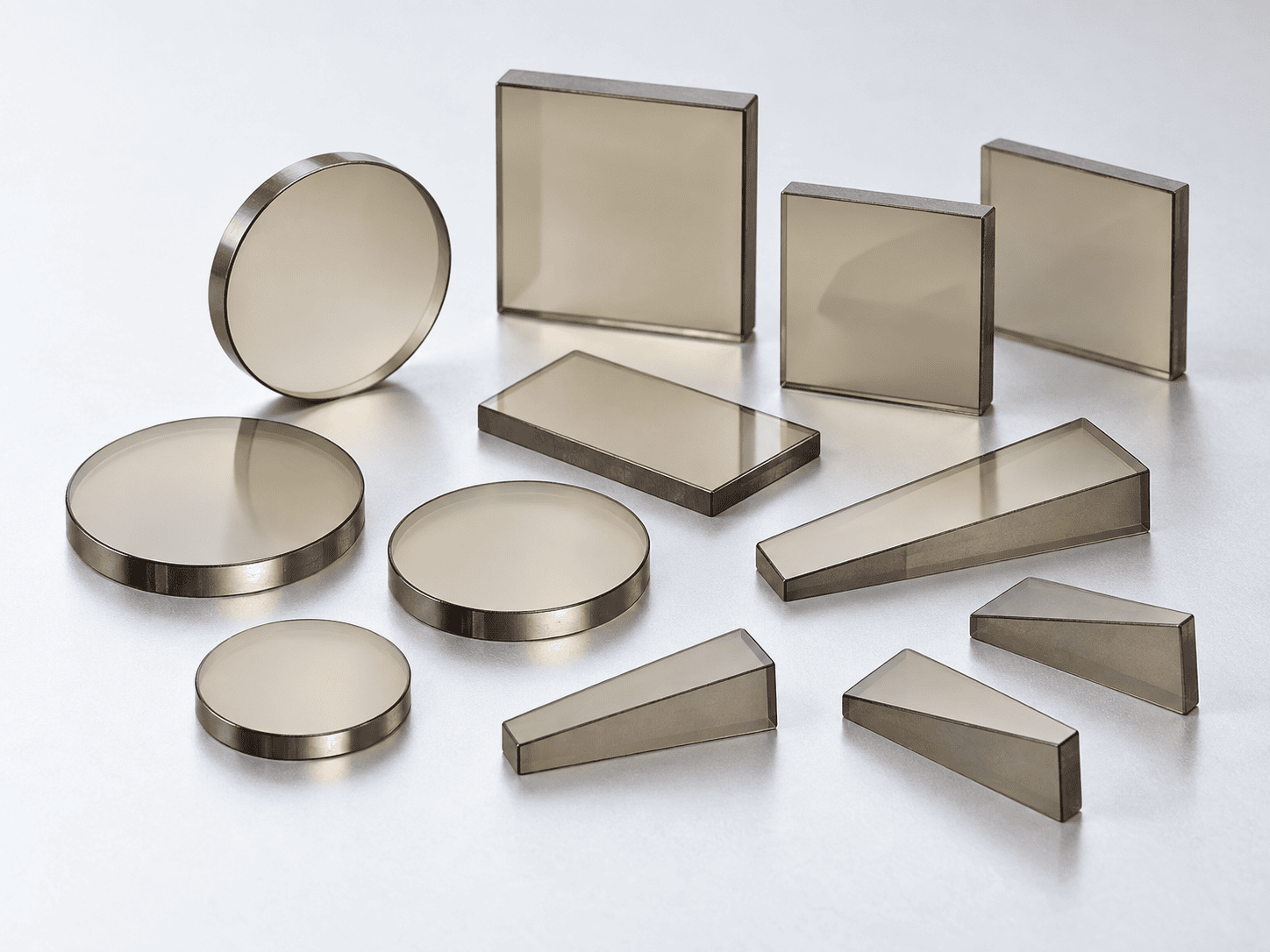

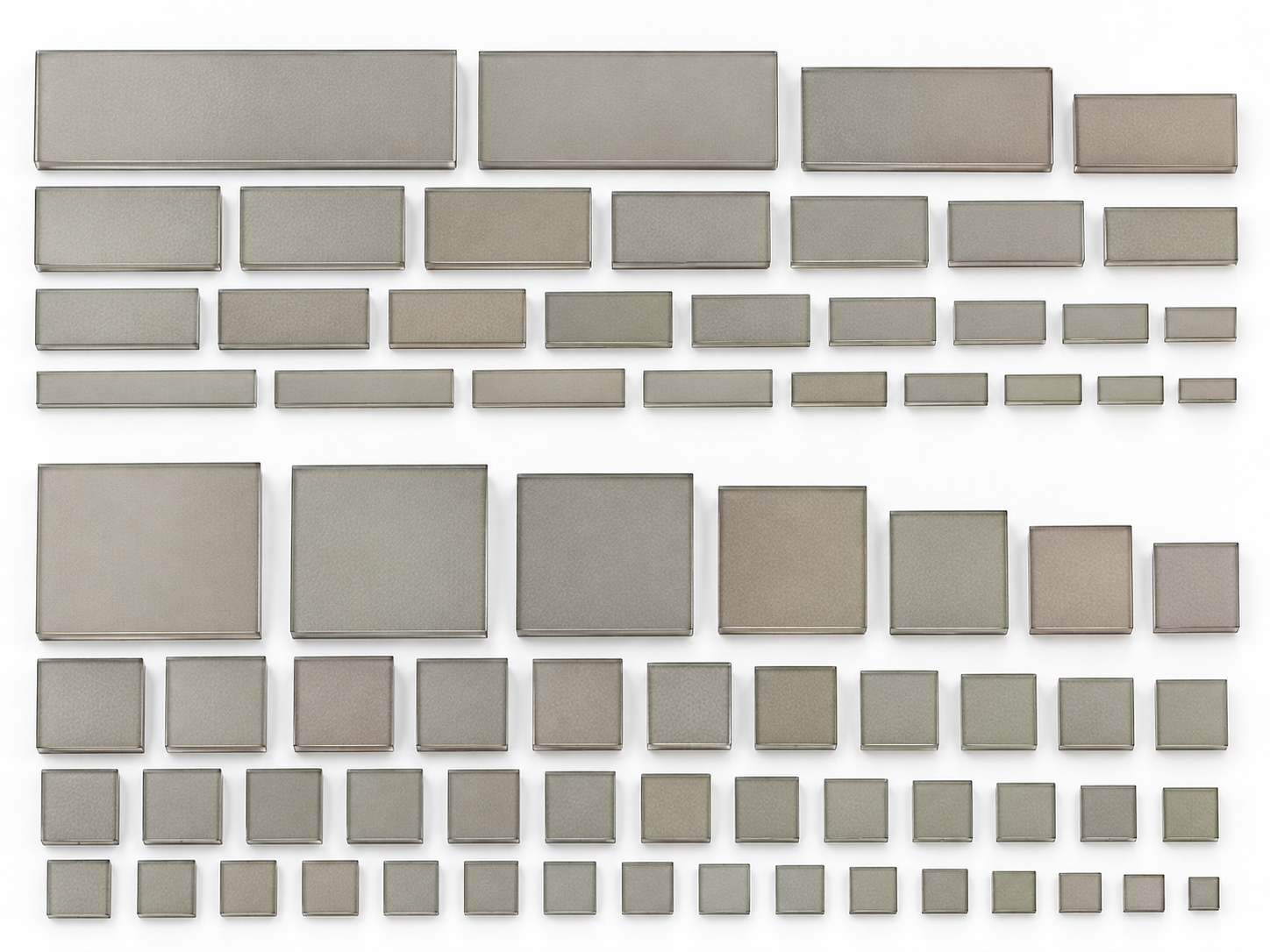

Single Crystal CVD Diamond
High-performance single-crystal CVD diamond for thermal, optical and engineering requirements.

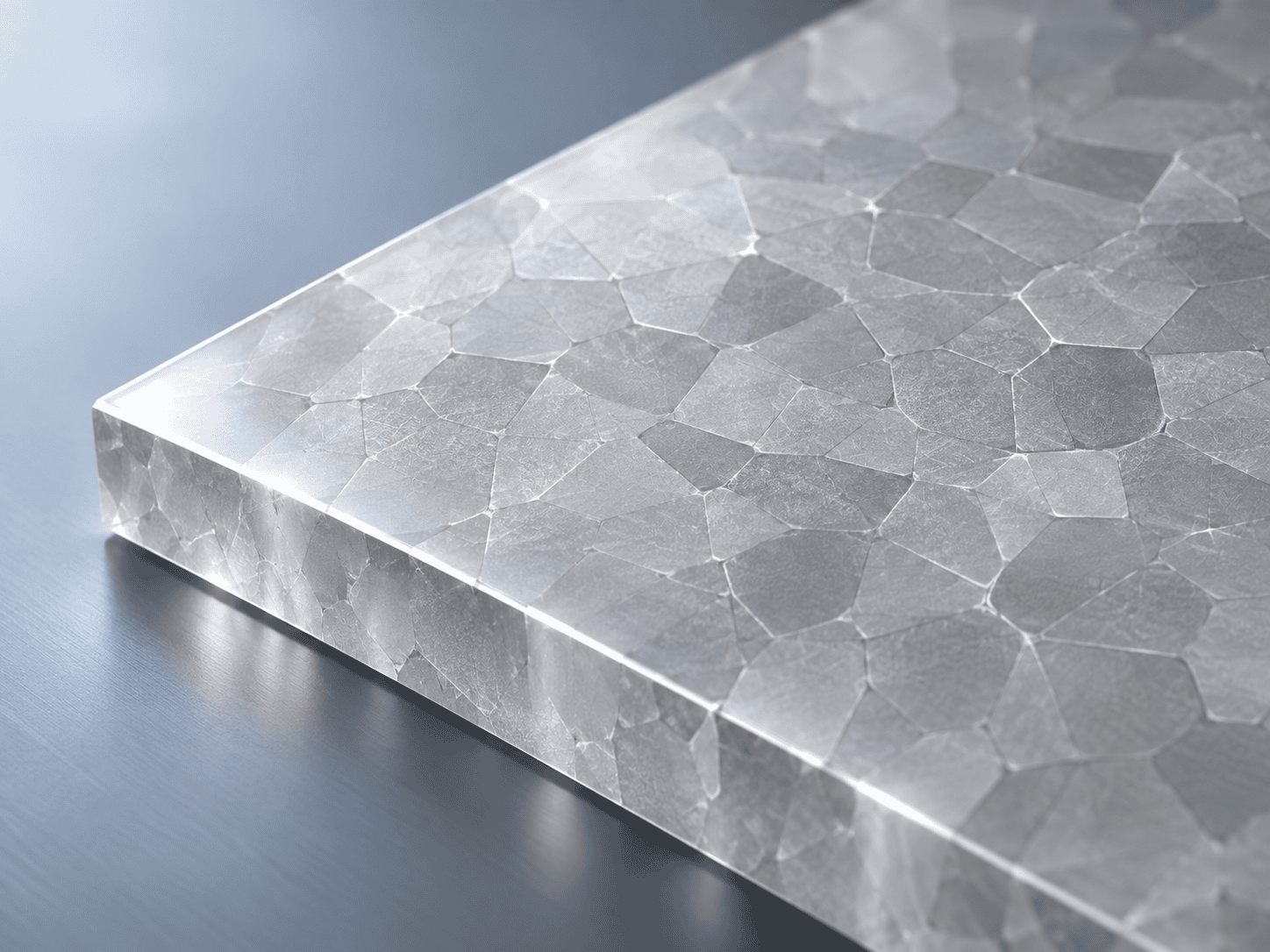

Polycrystalline CVD Diamond
Wafer and plate material for larger-area thermal and engineering applications.

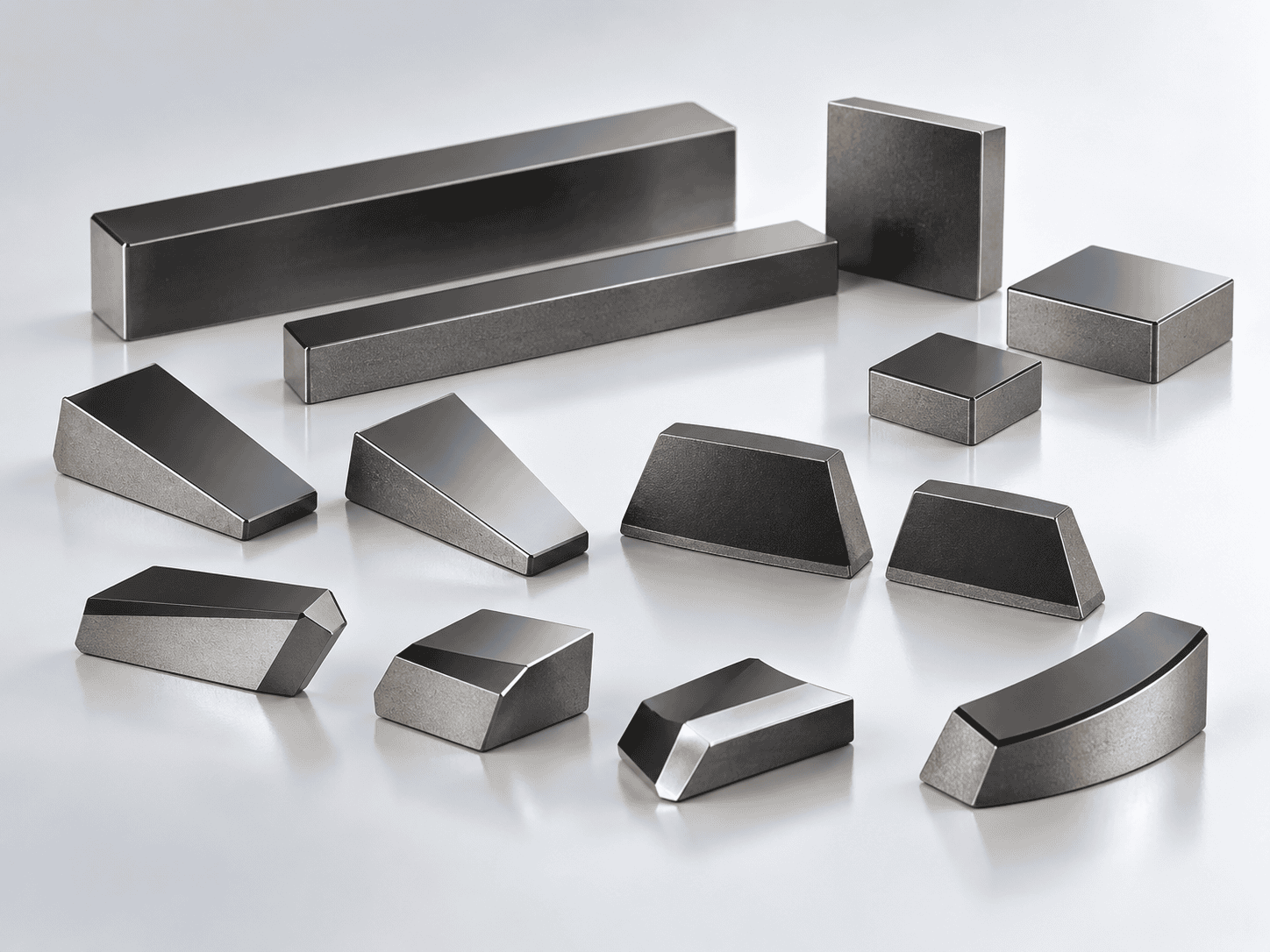

Tool Blanks & Diamond Components
Single-crystal CVD diamond tool materials and drawing-based tooling components.
Select the CVD Diamond Platform Around the Application
Single-crystal and polycrystalline CVD diamond offer different combinations of thermal performance, material area, thickness and processing options.
Single Crystal CVD Diamond
Polycrystalline CVD Diamond
Backed by MPCVD Manufacturing Resources
JingChuang CVD operates within the JingChuang–Wenzheng corporate group, combining CVD diamond production, downstream processing, inspection and application support.

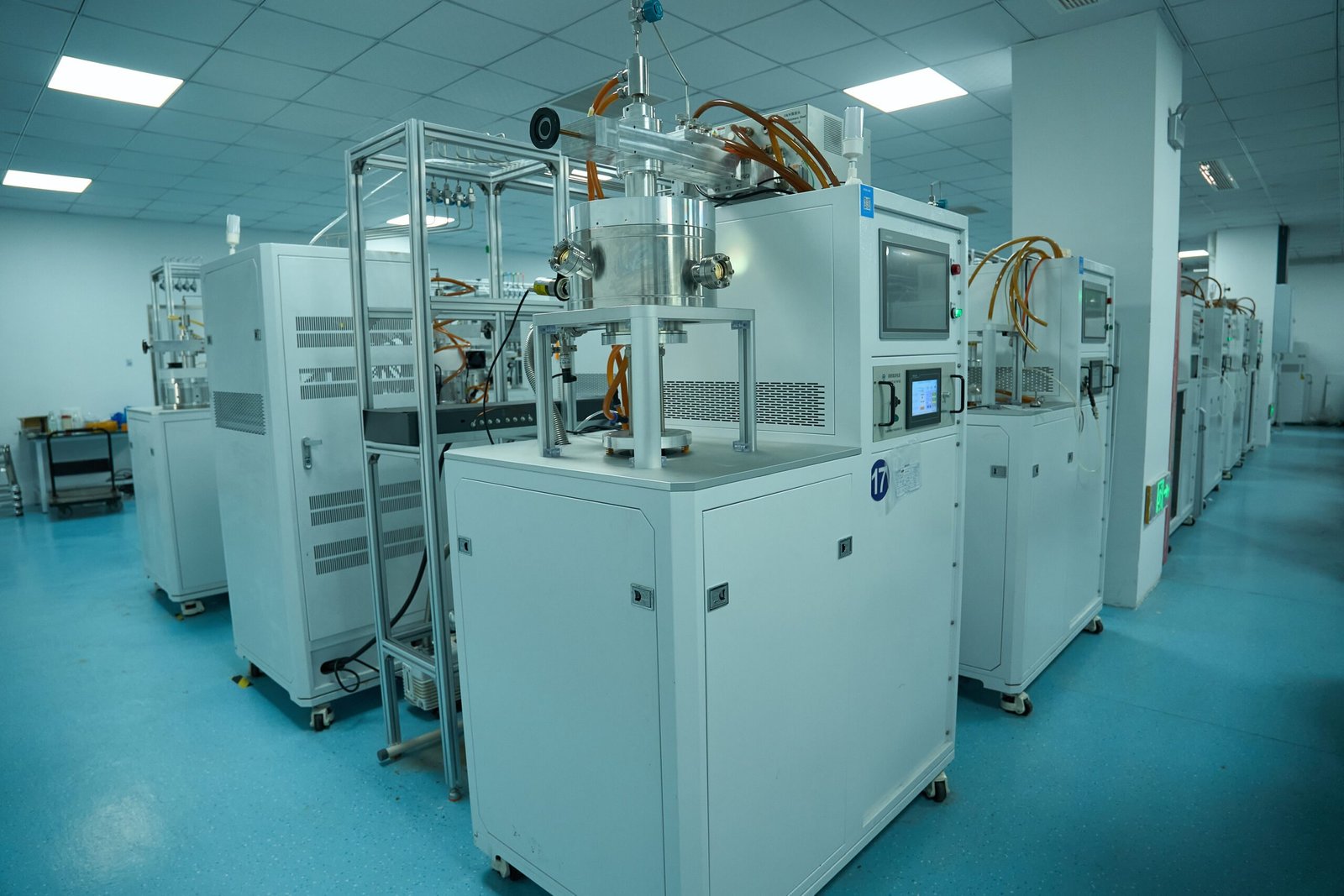

MPCVD Systems
Total MPCVD manufacturing systems across the relevant group entities.
10 / 12 kW Systems
MPCVD systems supporting material production at Anhui JingChuang.
75 kW MPCVD
High-power MPCVD systems within the group manufacturing network.

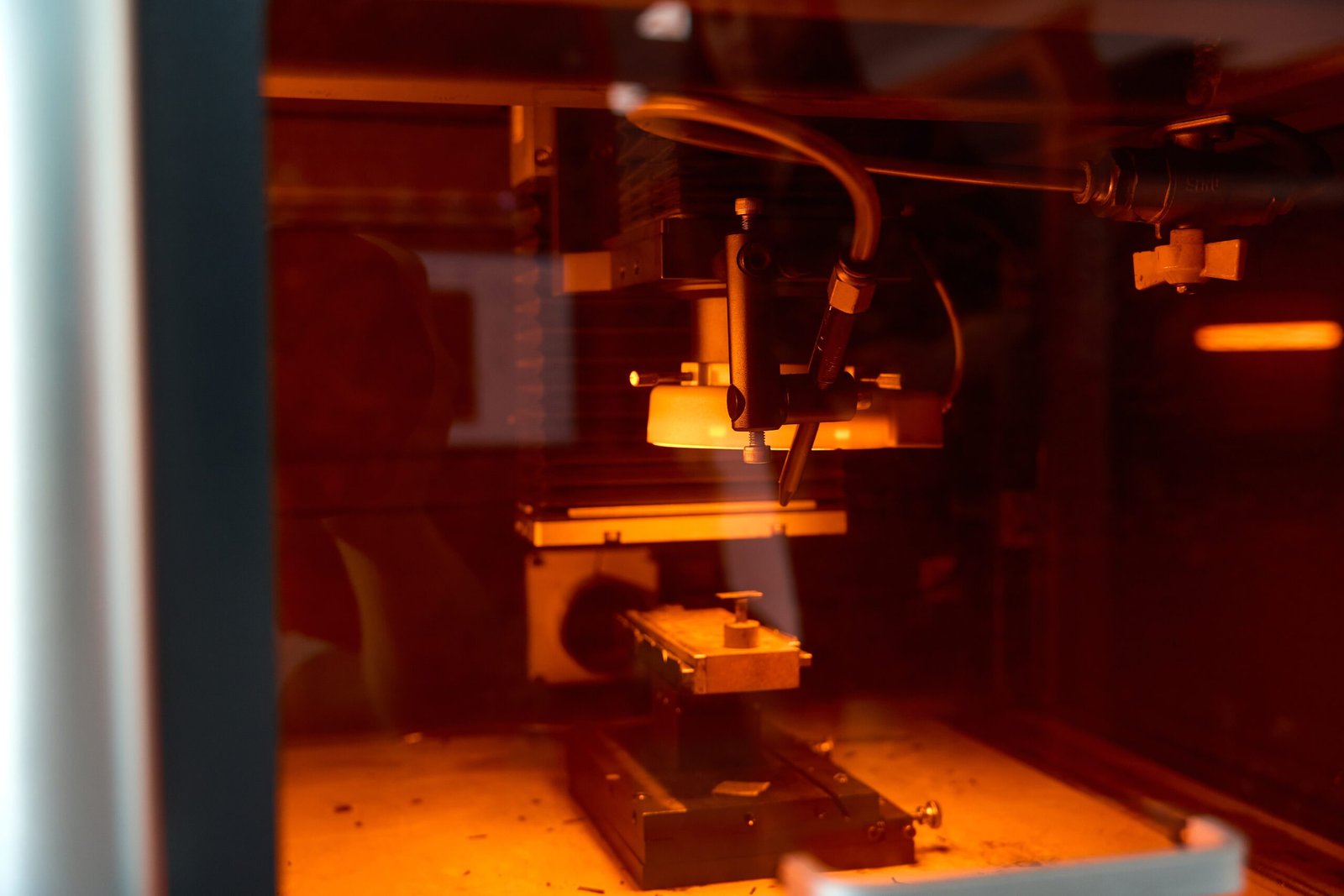

Manufacturing Support

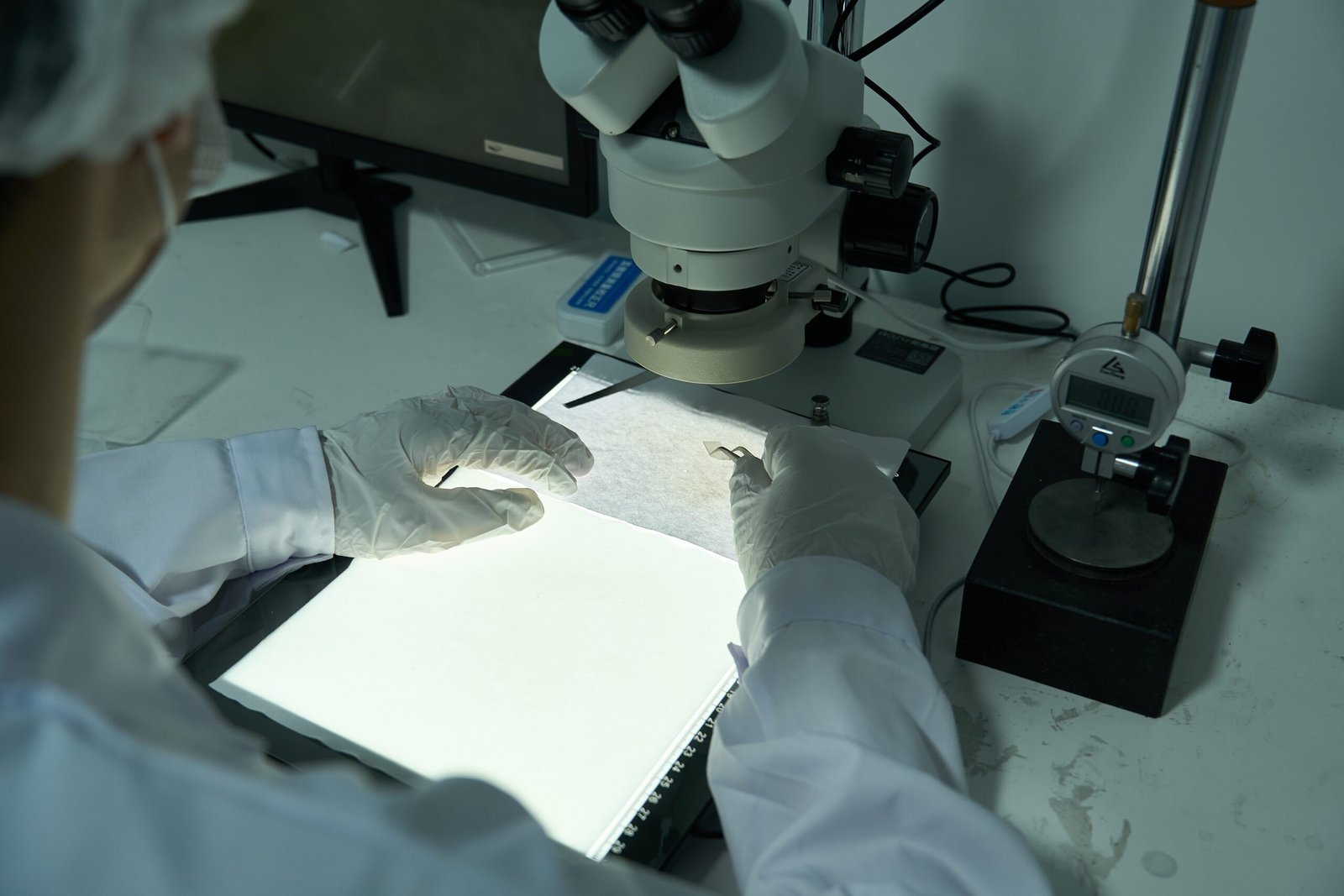

CVD production, processing and inspection support project execution.
Three CVD Diamond Orientations for Precision Tooling
Tool-material selection can begin from the workpiece, machining conditions and required tool geometry.
Precision Cutting
Easier edge preparation makes [100] material suitable for a range of precision cutting applications.
0.3–5 mm thickness
Wear & Impact Resistance
[110] material is suited to applications requiring stronger wear resistance and higher cutting loads.
1–20 mm thickness
Precision & Wear Components
Small high-purity material for dressing tools, wire dies and selected wear-resistant components.
1–2 mm thickness
Built Around Technical B2B Projects
CVD diamond requirements are often application-specific. The project starts by connecting material performance, geometry and final engineering use.
JingChuang CVD & Wenzheng Technology
JingChuang CVD operates within the same corporate group as Wenzheng Technology. The group combines resources related to CVD diamond growth, material processing, inspection, thermal-management applications and precision tooling.
Start With the Information You Already Have
A complete specification is not required for the first technical discussion. Start with the application, dimensions and available drawing.
Submit Requirements
Send the application, material requirement, dimensions, quantity and available drawing.
Technical Review
Review material grade, geometry, processing and inspection requirements.
Specification Confirmation
Confirm the technical and dimensional requirements before commercial review.
Quotation & Supply
Quotation and supply planning follow the confirmed project requirements.
Have a CVD Diamond Requirement?
Send your application, material requirement, dimensions, quantity and drawing for technical review. Our team can review the relevant material, manufacturing and processing path before quotation.
